CF Zierler GmbH

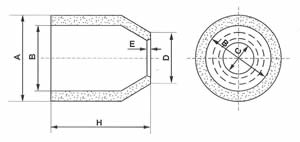

	A	B	C	D	E	H	Packing Box / Imballo Scatola	Packing 12 Boxes / Imballo 12 scatole	Packing Pallet / Imballo bancale	Volume
TS0	67-69mm	50mm	16mm	32-34mm	3mm	75mm	448	5376		0,13dm³
T0	67-69mm	50mm	25mm	42-44mm	3mm	98mm	288	3456		0,18dm³
T05	79-81mm	60mm	30mm	49-51mm	3mm	98mm	252	3024		0,25dm³
T1	93-95mm	75mm	37mm	55-57mm	3mm	98mm	180	2160		0,40dm³
T2	103-105mm	85mm	46mm	64-66mm	4mm	98mm	120	1440		0,47dm³
T2R	105-107mm	87mm	43mm	61-63mm	4mm	149mm	80	960		0,79dm³
T3	116-118mm	95mm	47mm	68-70mm	4mm	152mm	64	768		0,92dm³
T4	141-143mm	120mm	60mm	81-83mm	4mm	149mm	48	576		1,39dm³
T5	176-178mm	149mm	70mm	97-99mm	5mm	195mm	24	288	288	2,98dm³
T6	206-208mm	175mm	86mm	117-119mm	5mm	245mm			175	5,03dm³
T7	231-233mm	198mm	98mm	130-132mm	5mm	246mm			140	6,42dm³
T8	251-253mm	216mm	110mm	144-146mm	5mm	243mm			112	7,92dm³
T9	291-293mm	252mm	124mm	162-164mm	6mm	300mm			72	12,12dm³
T10	340-342mm	300mm	150mm	189-191mm	6mm	300mm			54	17,03dm³
T11	396-398mm	355mm	175mm	215-217mm	6mm	300mm			36	22,51dm³
