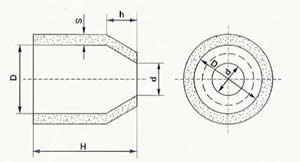

Type S
Narrow-necked Sleeves • Manicotti strozzati • Manchons tronconiques
D d H h S Packing Box /
Imballo Scatola		 Packing 12 Boxes /
Imballo 12 scatole		 Packing Pallet /
Imballo bancale		 Volume Termik modulus /
Modulo Termik
S1 40mm 17mm 75mm 25mm 7-9mm 616 7392 0,08dm3 1,1
S2 60mm 45mm 90mm 30mm 7-9mm 252 3024 0,24dm3 1,6
S3 80mm 50mm 150mm 40mm 8-10mm 96 1152 0,69dm3 2,2
S4 100mm 55mm 150mm 40mm 8-10mm 64 768 1,06dm3 2,6
S5 120mm 65mm 150mm 40mm 9-11mm 48 576 1,52dm3 3,0
S6 140mm 80mm 200mm 40mm 10-12mm 27 324 324 2,85dm3 3,7
S150 150mm 75mm 200mm 40mm 11-13mm 18 216 270 3,26dm3 3,8
S7 160mm 90mm 200mm 40mm 11-13mm 18 216 270 3,72dm3 4,0
S8 180mm 110mm 200mm 40mm 12-14mm 15 180 225 4,74dm3 4,4
S9 200mm 120mm 200mm 60mm 14-16mm 12 144 180 5,74dm3 4,7
S10 250mm 155mm 200mm 50mm 15-17mm 6 72 108 8,84dm3 5,4
