Type M
Cylindrical Sleeves • Manicotti cilindrici • Manchons cylindriques

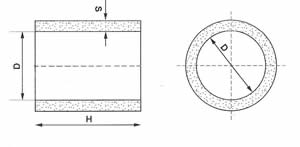

D H S Packing Box /
Imballo Scatola		 Packing 12 Boxes /
Imballo 12 scatole		 Packing Pallet /
Imballo bancale		 Volume Termik modulus /
Modulo Termik
M30 30mm 150mm 7-9mm 468 5616 0,10dm3 1,1
M1 40mm 150mm 7-9mm 308 3696 0,19dm3 1,3
M50 50mm 150mm 7-9mm 224 2688 0,29dm3 1,6
M2 60mm 150mm 7-9mm 168 2016 0,42dm3 1,9
M70 70mm 150mm 8-10mm 140 1680 0,57dm3 2,1
M3 80mm 150mm 8-10mm 96 1152 0,75dm3 2,3
M90 90mm 150mm 8-10mm 80 960 0,95dm3 2,6
M4 100mm 150mm 8-10mm 64 768 1,18dm3 2,8
M110 110mm 150mm 9-11mm 44 528 1,43dm3 3
M5 120mm 150mm 9-11mm 48 576 1,70dm3 3,2
M130 130mm 150mm 10-12mm 40 480 1,98dm3 3,3
M6
H150		 140mm 150mm 10-12mm 36 432 432 2,30dm3 3,3
M6 140mm 200mm 10-12mm 27 324 324 3,08dm3 3,7
M150 150mm 200mm 11-13mm 18 216 270 3,5dm3 4,0
M7 160mm 200mm 11-13mm 18 216 270 4,02dm3 4,1
M8 180mm 200mm 12-14mm 15 180 225 5,09dm3 4,4
M9 200mm 200mm 14-16mm 12 144 180 6,28dm3 4,7
M220 220mm 200mm 14-16mm 12 144 180 7,60dm3 5,1
M10 250mm 200mm 15-17mm 6 72 108 9,81dm3 5,4
6,7
M11 300mm 200mm 16-18mm 81 14,31dm3 x2
7,6
M12 350mm 200mm 17-19mm 54 19,23dm3 x2
8,4
M13 400mm 200mm 18-20mm 45 25,12dm3 x2
8,8
M14 450mm 200mm 19-21mm 36 31,79dm3 x2
9,9
M15 500mm 200mm 20-22mm 36 39,25dm3 x2
10,8
M16 550mm 250mm 22-24mm 14 59,36dm3 x3
12,2
M17 600mm 250mm 22-24mm 14 70,65dm3 x3
13
