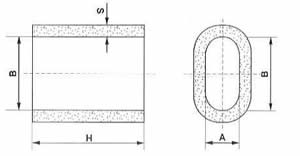

Type OV
Oval Sleeves • Manicotti ovali • Manchons ovales
| A x B | H | S | Packing Pallet / Imballo bancale |
Volume | Termik modulus / Modulo Termik |
|
|---|---|---|---|---|---|---|
| OV5 | 100mm x 160mm | 150mm | 9-11mm | 400 | 2,08dm3 | 3,3 |
| OV6 | 100mm x 200mm | 200mm | 11-13mm | 288 | 3,57dm3 | 3,7 |
| OV7 | 120mm x 240mm | 200mm | 13-15mm | 252 | 5,14dm3 | 4,2 |
| OV8 | 140mm x 280mm | 200mm | 13-15mm | 162 | 7,00dm3 | 4,7 |
| OV9 | 160mm x 320mm | 200mm | 14-16mm | 135 | 9,14dm3 | 5,1 |
| OV10 | 180mm x 360mm | 200mm | 16-18mm | 108 | 11,57dm3 | 5,3 |
| OV11 | 200mm x 400mm | 200mm | 17-19mm | 90 | 14,28dm3 | 5,7 |
| OV12 | 220mm x 440mm | 300mm | 18-20mm | 64 | 25,92dm3 | 6,3 |
| OV13 | 300mm x 450mm | 200mm | 19-21mm | 48 | 29,13dm3 | x2 8,6 |
